Description:
Magnesium Aluminum Silicate NF, Type IAA (Grade: ATPN K) is suitable for low acidity, exhibiting good compatibility with high acidity and high electrolyte content. Often used to provide a stable suspension system at low viscosity.
Applications:
Magnesium Aluminum Silicate NF (Type IAA) is employed in acidic pharmaceutical oral suspensions and hair care products containing conditioning active ingredients. Typical addition rates range from 0.5% to 3%.


Specifications:
|
				 Items  |

				 Specification  |

				 Test Method  |

|
				 Appearance  |

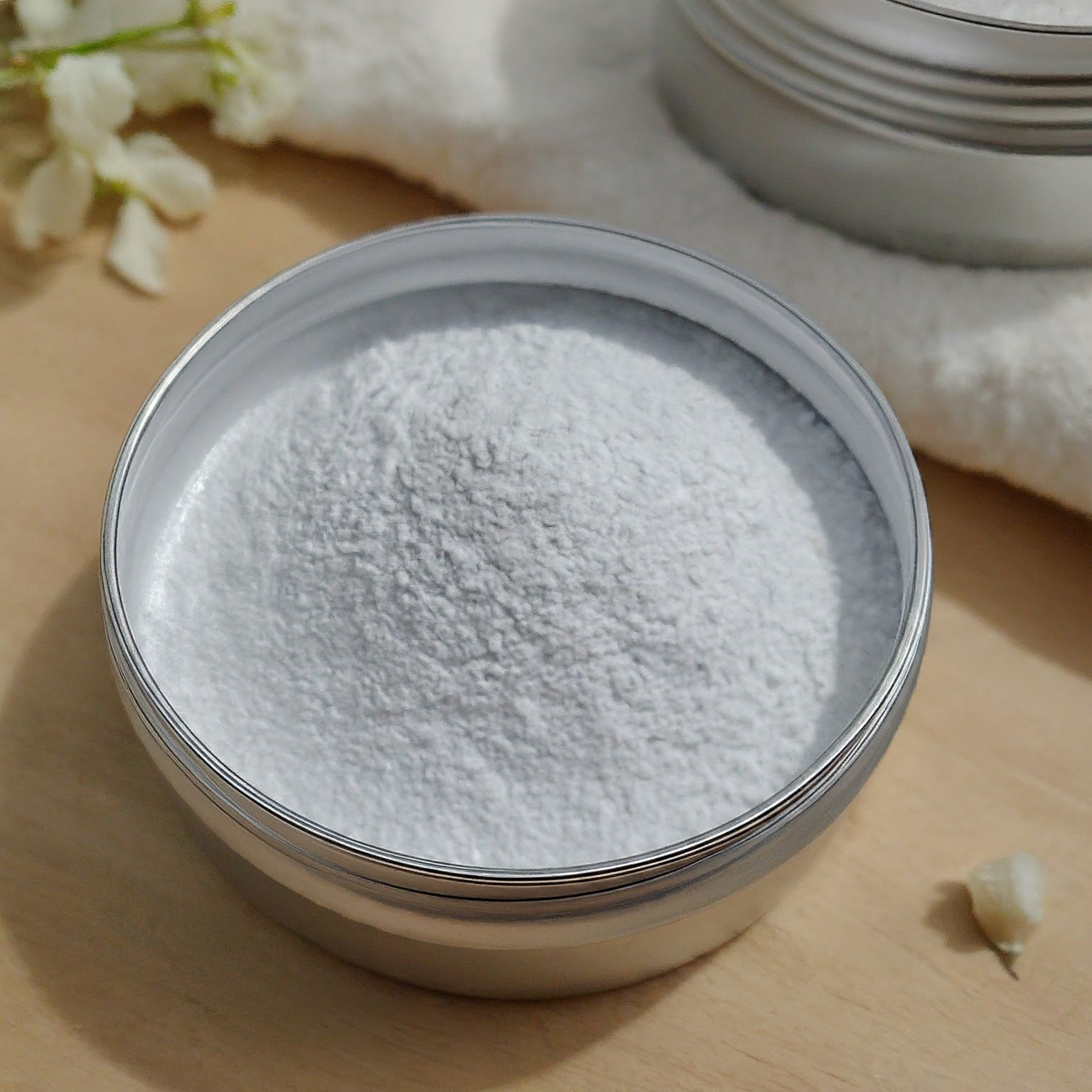

				 Off-white granules or powder  |

				 |

|
				 Acid Demand  |

				 4.0 maximum  |

				 Current Volume USP/NF  |

|
				 Al/Mg Ratio  |

				 1.4-2.8  |

				 Current Volume USP/NF  |

|
				 Arsenic Content  |

				 3 ppm maximum  |

				 Current Volume USP/NF  |

|
				 Lead Content  |

				 15 ppm maximum  |

				 Current Volume USP/NF  |

|
				 Microbiology  |

				 No more than 100 cfu/g bacteria  |

				 Current Volume USP/NF  |

|
				 No more than 100 cfu/g fungi & yeast  |

				 Current Volume USP/NF  |
		|
|
				 No Escherichia coli  |

				 Current Volume USP/NF  |
		|
|
				 No Salmonella sp.  |

				 Current Volume USP/NF  |
		|
|
				 No Staphylococcus aureus  |

				 Current Volume USP/NF  |
		|
|
				 No Pseudomonas aeruginosa  |

				 Current Volume USP/NF  |
		|
|
				 No Gram-negative organisms  |

				 T-968  |
		|
|
				 Moisture Content  |

				 8.0% maximum  |

				 Current Volume USP/NF  |

|
				 pH, 5% Dispersion  |

				 9.0-10.0  |

				 Current Volume USP/NF  |

|
				 Viscosity, Brookfield, 5% Dispersion  |

				 100-300 cps  |

				 Current Volume USP/NF  |

|
				 X-ray Diffraction  |

				 Peaks between 1.492-1.504, 1.510- 1.540, and 15.0-17.2 Angstroms  |

				 Current Volume USP/NF  |

Storage: ATPN K is hygroscopic and should be stored under dry condition.
