Product Description

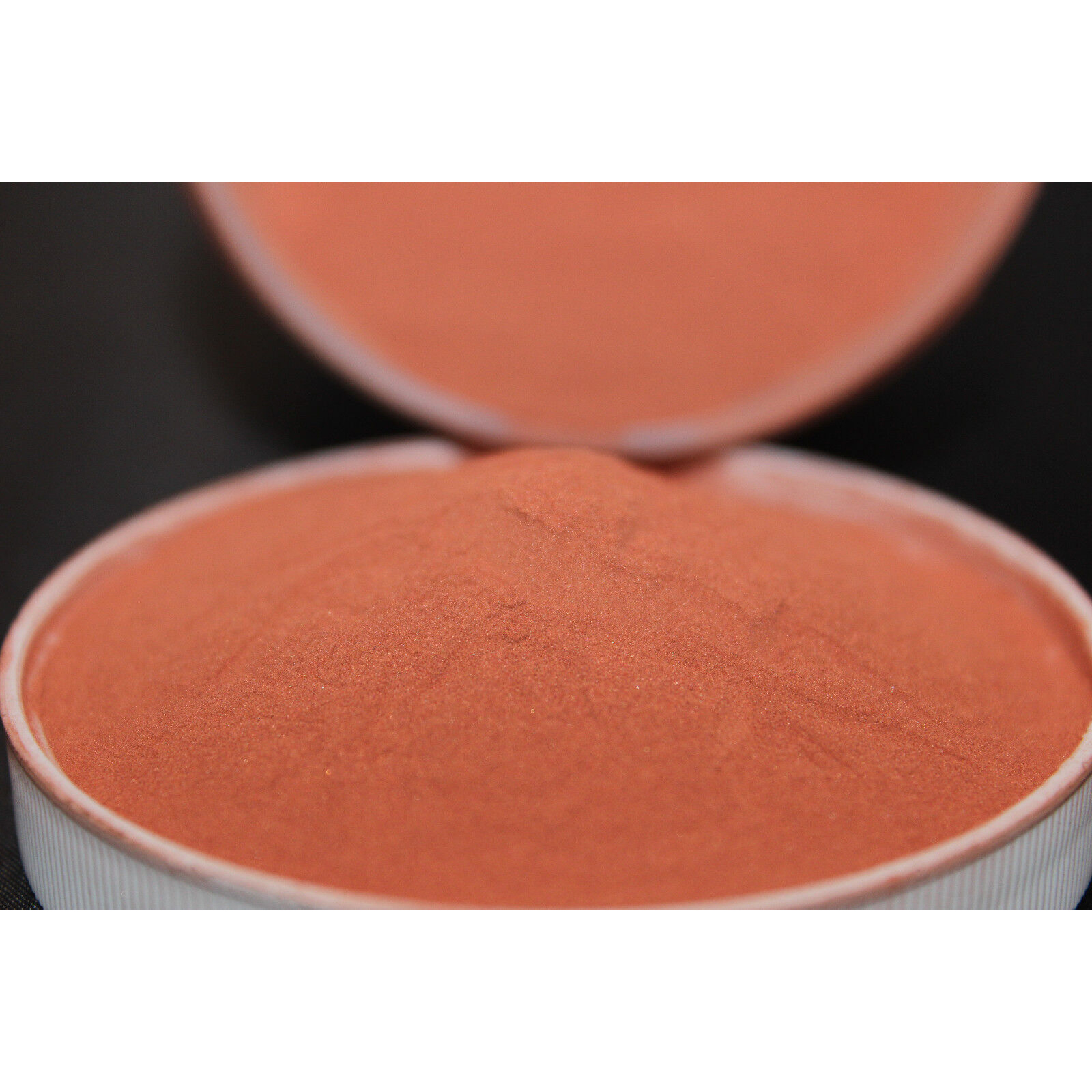

Nano Copper Powder / Submicron Copper Powder
-
7440-50-8
-
Cu-150/300/500/600/1000
-
Entrepreneur
-
-
Specifications:
|
Grades |
PSA um |
BET (m2/g) |
APS (μm) |
C content (ppm) |
O content (ppm) |
Al content (ppm) |
Ni Content (ppm) |
Fe Content (ppm) |
||
|
D10 |
D50 |
D90 |
||||||||
|
Cu-150 |
0.25 |
0.58 |
1.03 |
4.56 |
0.15 |
1679 |
15111 |
29 |
30 |
23 |
|
Cu-300 |
0.4 |
0.71 |
1.17 |
1.74 |
0.39 |
3642 |
7737 |
23 |
29 |
21 |
|
Cu-500 |
0.5 |
0.84 |
1.42 |
1.45 |
0.46 |
3035 |
7689 |
22 |
21 |
27 |
|
Cu-600 |
≤0.2 |
≤1.3 |
≤4 |
≥2 |
0.4-0.6 |
≤3000 |
≤6000 |
≤100 |
≤100 |
≤100 |
|
Cu-1000 |
≤0.3 |
≤2 |
≤5 |
≤2 |
0.8-1.3 |
≤3000 |
≤5000 |
≤100 |
≤100 |
≤100 |
Applications:
1. Low-temperature sintered copper paste;
2. Sintering activators;
3. Conductive pastes, etc.
SEM Images:
Cu-150 ↓
Cu-300 ↓
Cu-500 ↓
Cu-600 ↓
Cu-1000 ↓
