Description:

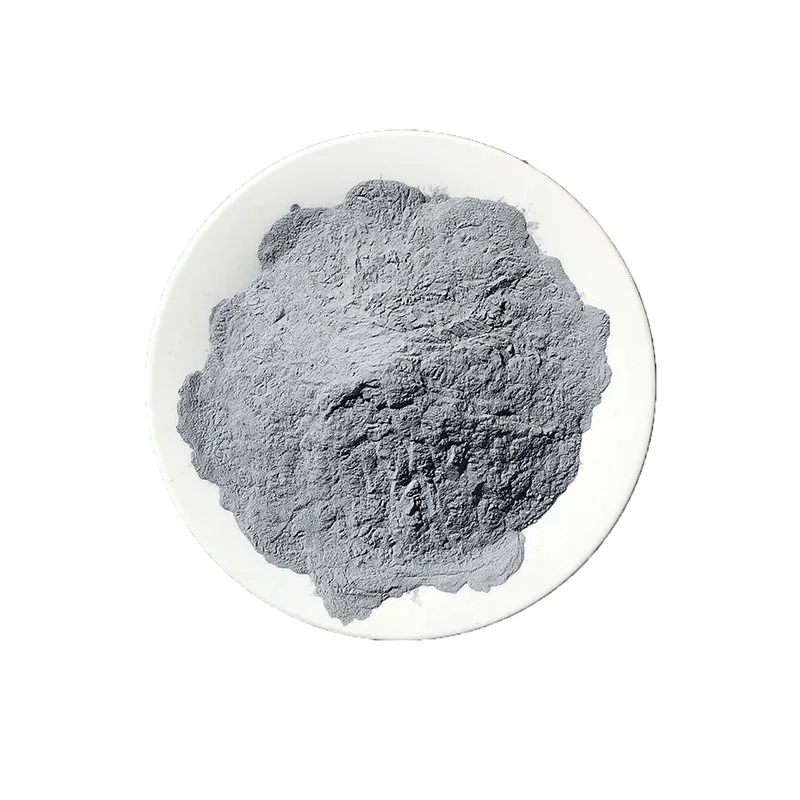

AT-AgF-3C and AT-AgF-3A flake silver powders have the characteristics of easy dispersion and good conductivity. They are mainly used as conductive fillers in low-temperature curing type conductive pastes, polymer conductive silver pastes, silver pastes for chip components, and conductive adhesives. Small flake diameter silver powders can also be used in mid-to-high temperature sintering type conductor pastes, such as silver pastes for the backside of solar cells and touch screen silver pastes.

Specification:

Grades	Average particle size (μm)	Bulk density (g/cm3)	Tapped density (g/cm3)	Specific surface area (m2/g)	Loss on ignition (540℃, 1hr)
AT-AgF-3C	1.8-4.0	1.0-1.4	1.8-3.0	0.6-1.2	≤0.9
AT-AgF-3A	3.0-7.0	1.5-2.5	2.5-3.5	0.25-0.65	≤0.4

SEM image of  AT-Ag-3C

SEM image of  AT-Ag-3A
